Wall Mount Android Tablet Embedded PoE Touch Screens

Name: Wall Mount Android Tablet Embedded PoE Touch Screens
Brand: SIBO
Price: 1 USD

Place of Origin : Shenzhen

Brand Name : SIBO

Certification : CE, FCC

Model Number : Q896

MOQ : 2 units

Delivery Time : 5-25 working days

Payment Terms : T/T

Supply Ability : 2000pcs/month

Packaging Details : 10 pcs in one carton

Contact Now

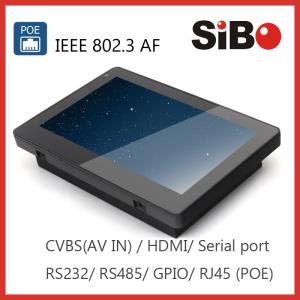

Wall Mount Android Tablet Embedded PoE Touch Screens

For Smart home and control

IPS Screen (G+G glass)
Android OS
Inwall / Onwall version
Serial port , GPIO , Uart interface
No buttons design
Slim Body with 3 Brackets for wall mounting
Camera & Mic

Model Number		Q896
Hardware Specs	Solution	Allwinner Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	1GB
	Nand Flash	4GB

Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Integrated 3W Amplifier (No Speakers, Only Speaker connector)
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB Socket
		CVBS IN
		DC IN Power Terminal
		UART, IO, 3W AMP OUT Available

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
	LAN Port	Ethernet RJ45

Power Supply	DC IN	DC 9V-24V

Boot Up	Auto Boot	Auto Boot Up When Power Supplies
	Software	Auto Run Web App

Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available !
Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200)
Wall Mount Android Tablet Embedded PoE Touch Screens

Desktop bracket and the mounting picture:
Wall Mount Android Tablet Embedded PoE Touch Screens

Flush mounting installation:
Wall Mount Android Tablet Embedded PoE Touch Screens

On wall mounting:
Wall Mount Android Tablet Embedded PoE Touch Screens

Welcome the OEM orders for smart home , home automation applications...
