7 Inch Android Touch Panel PC Mountable With POE Swithable Led

Name: 7 Inch Android Touch Panel PC Mountable With POE Swithable Led
Brand: SIBO
Price: 1 USD

China 7 Inch Android Touch Panel PC Mountable With POE Swithable Led factory

Brand Name : SIBO

Model Number : Q896

Certification : CE, FCC

Place of Origin : Shenzhen

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-25 working days

colour : black / white

DC IN : 9V-36V

Special : power over ethernet

Power supply : poe / dc in

Service : OEM / ODM

warranty : 1 year

android system : android system 4.4.4

application : smart home control

Mount way : inwall mount

interface : gpio

MOQ : 2 units

Packaging Details : 10 pcs in one carton

Contact Now

7 Inch Android Touch Panel PC Mountable With POE Swithable Led

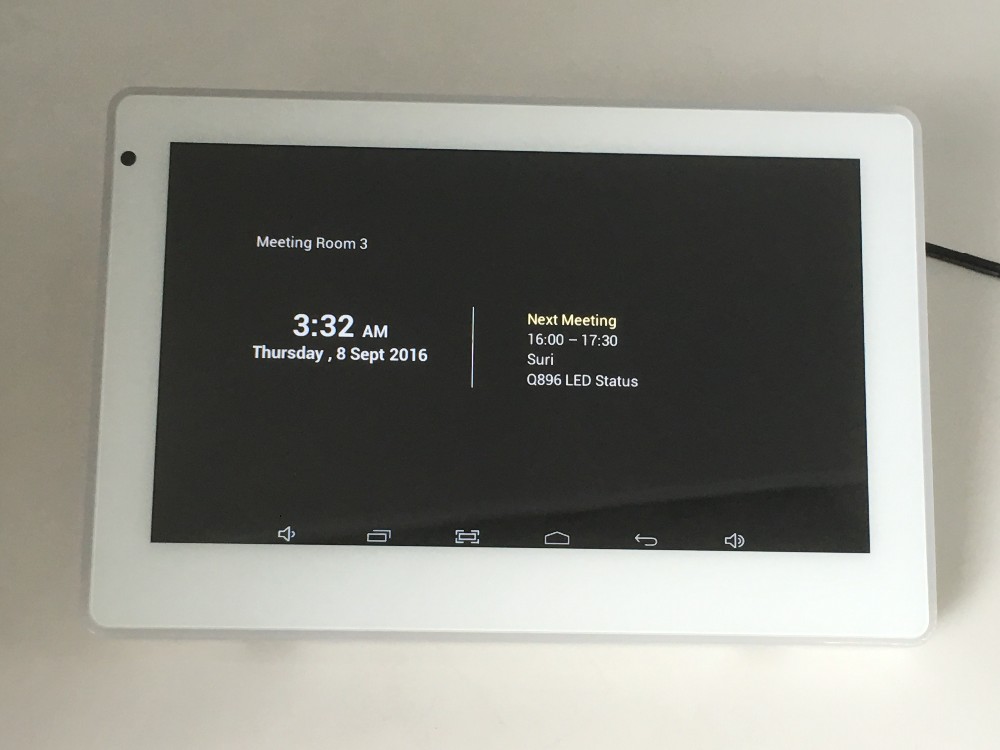

Q896 model is 7" android pancel pc mountable with poe and led. You are able to switch the led colour as you touch the screen the software we supply. We have 4 led colour to provide for you. As you touch the screen, the led will switch the led colour. With poe, you are able to enjoy both the net and power supply. And you are able to download the apps from the Google store with android 4.2.2 system. Also it has multi mounting ways, for inwall /onwall/ glass wall mount. It is quite suitable for you to mount in home.

Application:

Home automation, control other devices in home
Data collection
Security system
Showing energy data in homes
Home/Building/Hotel Automation Integration

7 Inch Android Touch Panel PC Mountable With POE Swithable Led

Product Description

7 Inch Android Touch Panel PC Mountable With POE Swithable Led

Model Number		Q896
Hardware Specs	Solution	Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	1GB
	Nand Flash	8GB

Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB Socket
		CVBS IN
		DC IN Power Terminal (9V-30V)
		Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 (Option)
	LAN Port	Ethernet RJ45

Power Supply	DC IN	DC 9V - 24V

Boot Up	Auto Boot	Auto Boot Up When Power Supplies

7 Inch Android Touch Panel PC Mountable With POE Swithable Led

poe picture:

Inwall flush mount

onwall mount

Glass wall mount picture:

different led colour

Advantage:

Android OS rooted
Inwall flush/onwall surface/glass wall/desktop different mounting ways
CBVS , HDMI, USB 2.0(default by USB host),GPIO/RS232/RS485
No physical buttons design & No battery design
POE (IEEE 802.3 af 48V)
Optional to remove Android navigation bar(support full screen software application in kiosk mode)
Optional to provide USB jumper to connect PC for debugging

Our Services

15 Years Experiences in Tablet PC for Automation
Competitive Price Directly From Manufacturer( Our Own Factory)
Excellent Support for Software and Hardware Modification
Services for Customized Logo and package
Quick Response for after-sale Services
On-time Delivery

7 Inch Android Touch Panel PC Mountable With POE Swithable Led

As a manufacturer, ODM/OEM service is provided
